基本型式

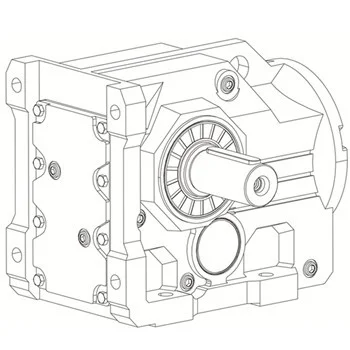

產品代號：K..

產品說明：三級弧齒＋斜齒輪減速傳動；底腳安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: K

Product Description: Three stage spiral tooth+helical gear reduction transmission; Foot installation; The reduction ratio range is 3.98 to 197.37; Transmission power range: 0.12-200kW.

產品代號：KA..B

產品說明：三級弧齒＋斜齒輪減速傳動；底腳空心軸安裝；減速比范圍4.64～197.37；傳遞功率范圍0.12～200kW。

Product code: KA B

Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.

產品代號：KH..B

產品說明：三級弧齒＋斜齒輪減速傳動；底腳空心軸鎖緊盤安裝；減速比范圍4.64～197.37；傳遞功率范圍0.12～200kW。

Product code: KH B

Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.

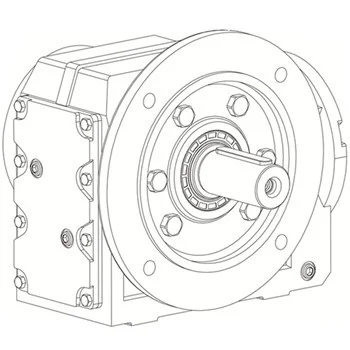

產品代號：KF..

產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KF

Product Description: Three stage spiral tooth+helical gear reduction transmission; B5 flange installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

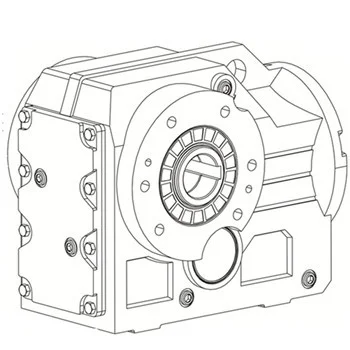

產品代號：KAF..

產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KAF

Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

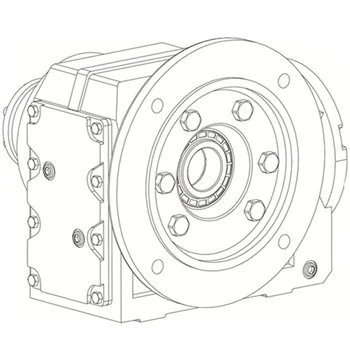

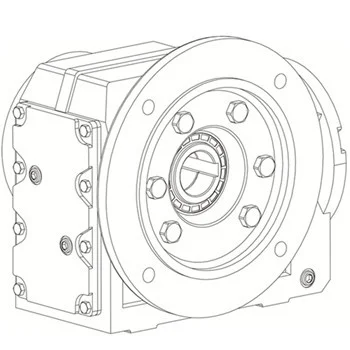

產品代號：KHF..

產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KHF

Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

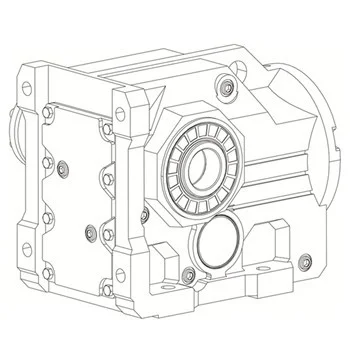

產品代號：KA..

產品說明：三級弧齒＋斜齒輪減速傳動；空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KA

Product Description: Three stage spiral tooth+helical gear reduction transmission; Hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

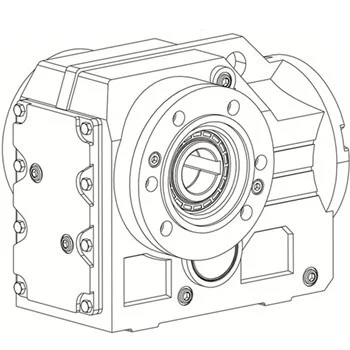

產品代號：KH..

產品說明：三級弧齒＋斜齒輪減速傳動；空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KH

Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

產品代號：KAZ..

產品說明：三級弧齒＋斜齒輪減速傳動；B14法蘭空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KAZ

Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

產品代號：KHZ..

產品說明：三級弧齒＋斜齒輪減速傳動；B14法蘭空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。

Product code: KHZ

Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft locking plate installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

組合應用

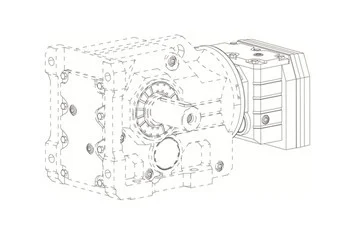

 產品代號：K../RF..

產品說明：為得到特別低的輸出轉速，可以將RF減速機做為K減速機的輸入。

Product code: K/ RF

Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the K gearbox.

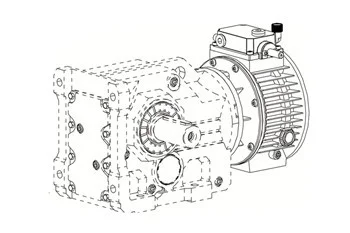

產品代號：K../UD..

產品說明：為得到特別低并且可以連續變化的輸出轉速，可以將UD無級變速器做為K減速機的輸入。

Product code: K/ UD

Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the K gearbox.

速倍達是一家專業生產減速機的公司，包括R系列、K系列、S系列和F系列。具體來說，

R系列減速機是同軸齒輪減速機，具有安裝便捷、適應性強、可靠耐用、承受過載能力高等特點，而且可以通過看型號的數字字母組合來了解其指數。

K系列減速機是錐齒輪減速機，具有降噪、減震、重量輕、成本低等優點，但與錐齒輪配合的要求較高，設計及制造的周期較長。

S系列減速機是斜齒輪-渦輪減速機，具有自鎖功能，自動化程度較高，可以在0.12KW到22KW中匹配不同類型的電機。

F系列減速機是平行軸斜齒輪減速機，其特點是采用單元結構模塊化設計原理，減少了零部件種類和庫存量，也縮短了交貨周期，適合加工精度高的情況，但缺點是成本相對較高。

此外，速倍達還生產其他類型的減速機，如RV蝸輪蝸桿減速機、準雙曲面減速機、小金剛減速電機和行星減速機等系列，以滿足不同客戶的需求。

這些減速機廣泛應用于各種機械設備中，能夠提供高效的傳動和減速功能。
